Application of KOBELCO Eco-Solutions in Sustainable Circular Society

Industrial Park / Primary Industrial Waste Water Treatment

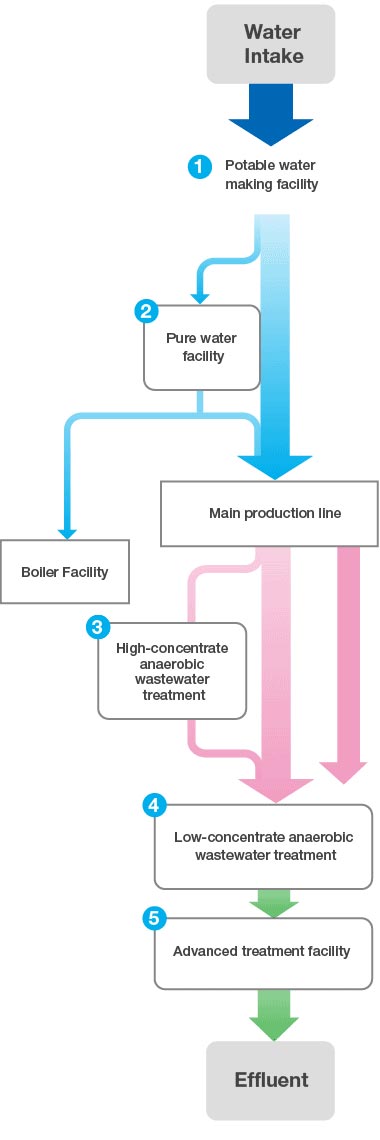

Food Factory Case
chartchart

Advantage

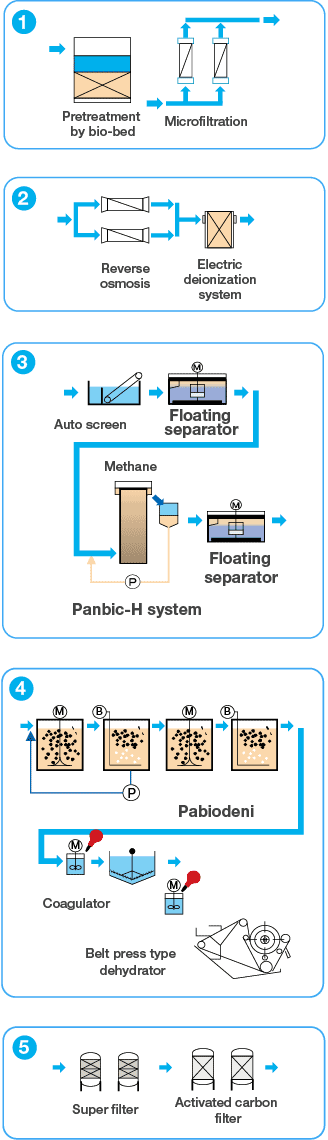

High-concentrate anaerobic wastewater treatment

Floating separator

Unique design of the collection pipes and center well for Dissolved Air Flotation (DAF) System enables higher flow rate.

  • Small foot print
  • Optimum cost
Panbic-H system

Higher microbial capacity enables high-efficient treatment compared to UASB.

Low-concentrate anaerobic wastewater treatment

Combination of bio reactor, mixing and fluidization of careers, and segregation of microbes in multiple careers, and segregation of microbes in multiple reactors enables high-efficient treatment.

  • No return sludge
  • High organic loading: 5 to 10 times as much as conventional activated sludge method
  • No back wash
  • Flexibility to adopt to various types of a reactor tank
