Grate Type Incineration

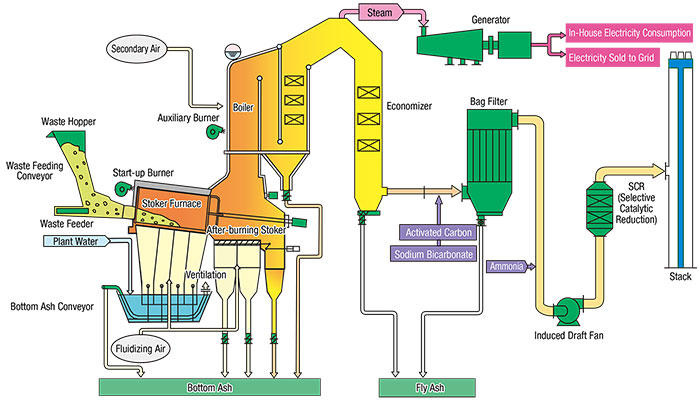

Process Flow Diagram

figure

Overview

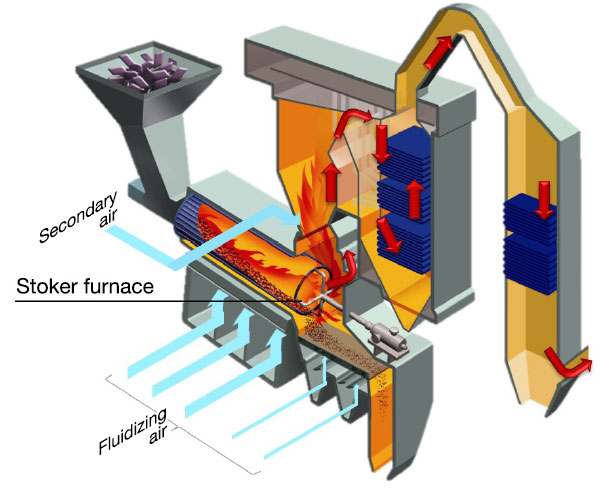

Our grate type incineration is equipped with a rotating furnace that efficiently mixes, stirs and incinerates waste. With the furnace walls consisting of boiler water tube walls, the facility also boasts a simple and solid structure with a relatively low number of moving parts.

Features

1. Versatile

Thanks to the rotating furnace that efficiently mixes and stirs waste, the facility is capable of incinerating a wide variety of waste.

2. Superior Power Generation Efficiency

Heat is efficiently collected through boiler water pipes constituting the furnace walls. This helps realize highly efficient power generation via waste incineration.

3. High Durability

The furnace walls cooled by water pipes are protected against corrosion and therefore extremely durable.

figure

Examples of Our Track Record

Tamagawa Clean Plant
Facility name Tamagawa Clean Plant
Treatment capacity 300t/day (150t/24h x 2 lines)
Power generation capacity 6,400kW
Completion June 2003
Okuyama Plant (Shimonoseki City Environmental Department)
Facility name Okuyama Plant (Shimonoseki City Environmental Department)
Treatment capacity 180t/day (180t/24h x 1 line)
Power generation capacity 3,180kW
Completion November 2002
Toban Seaside Wide-area Clean Center
Facility name Toban Seaside Wide-area Clean Center
Treatment capacity 429t/day (143t/24h x 3 lines)
Power generation capacity 12,000kW
Completion June 2022
Hatoyama New Waste Incineration Facility (tentative name)
Facility name Hatoyama New Waste Incineration Facility (tentative name)
Treatment capacity 130t/day (65t/24h x 2 lines)
Power generation capacity 2,420kW
Completion April 2023

Waste Treatment Systems Marketing and Sales Department, Marketing and Sales Division, Environmental Engineering Business Unit, Kobelco Eco-Solutions Co., Ltd.
